Question 1

How do I decide between selective, push back, drive-in, and pallet flow racking?

Accepted Answer

It comes down to SKU count, pallet velocity, and how much selectivity your picking process needs. Selective racking gives you 100% access and works when you carry many SKUs with low pallets per SKU, while push back, drive-in, and pallet flow trade some selectivity for far greater density on high-volume SKUs. During a free warehouse design consultation we model your pallet positions under each system so you can see the density and throughput tradeoff side by side before you commit.

Question 2

How much additional storage can we gain without expanding our building?

Accepted Answer

Most Orlando operations we work with gain 20-40% more pallet positions in the same footprint by going taller, tightening aisle widths to match their lift equipment, and moving slow-moving SKUs into high-density racking. We start with your clear height, column spacing, and sprinkler layout, then lay out options that use the vertical cube you're already paying for. The design work and layout drawings are complimentary.

Question 3

What does your warehouse design process actually look like?

Accepted Answer

We start with a conversation about your SKU profile, pallet dimensions, throughput targets, and growth plans, then produce CAD layout drawings showing aisles, pallet positions, and traffic flow. You get options rather than a single take-it-or-leave-it plan, and we revise the layout as your requirements sharpen. There's no cost for the design work and no obligation to buy the steel from us.

Question 4

How do aisle widths and forklift equipment affect the layout?

Accepted Answer

Aisle width is usually the single biggest lever on pallet positions. Sit-down counterbalanced lifts typically need 12-13 feet, reach trucks work in 8-9 feet, and turret trucks operate in very narrow aisles under 6 feet. We plan around the fleet you already run, and if you're considering an equipment change we'll show what the racking layout looks like both ways so you can weigh the capital cost against the positions gained.

Question 5

How do you determine beam and upright capacity for our loads?

Accepted Answer

We size uprights and beams from your heaviest pallet load, the number of pallets per level, beam length, and the vertical spacing between levels. Capacity is always specified per level and per bay, and we provide load capacity plaques so your team knows the limits at a glance. If your loads vary widely, we'll design around the worst case rather than the average.

Question 6

Can you reconfigure or expand the racking we already have?

Accepted Answer

Yes, and it's often the fastest path to more capacity. We identify your existing frame and beam profile, confirm what can be safely reused, and design the expansion around it so you're not replacing steel that still has service life. Where a profile has been discontinued we'll tell you plainly and price both the match and the changeover.

Question 7

What is a realistic timeline from design to a racking system we can load?

Accepted Answer

Standard components typically ship within a few days, and most installations run one to four weeks depending on size and how much sequencing your operation needs. Specialty systems like pallet flow and push back carry longer lead times, so we flag those early in the design phase. We give you a dated schedule up front and keep you posted if anything moves.

Question 8

Will installation shut down our warehouse?

Accepted Answer

Rarely. We phase installations by zone, work nights and weekends when that's what keeps your dock running, and coordinate directly with your operations lead on staging areas and lift traffic. Our crews clean up daily so your team isn't working around debris. This kind of scheduling flexibility is where our local Orlando presence pays off.

Question 9

Do you support Orlando-area facilities after the installation is finished?

Accepted Answer

Yes. Because we're based in Orlando and serve Central Florida directly, we can get parts and people to your facility quickly when a frame gets hit by a lift or you need to add bays. Replacement uprights, beams, wire decking, and column protection are things we handle regularly for customers we installed years ago. Ongoing support is part of the relationship, not a separate transaction.

Question 10

What should we have ready before requesting a design?

Accepted Answer

A building drawing or dimensions with clear height and column spacing, your pallet dimensions and weights, your SKU count, and the lift equipment you run will get us most of the way there. If you don't have all of it, send what you have and we'll work from there. Growth projections help too, since it's cheaper to design headroom in now than to reconfigure in eighteen months.

Question 11

Do you work with new or used racking?

Accepted Answer

We focus on new pallet rack systems so capacities are documented and manufacturer warranties apply. Used racking can make sense in narrow situations, and we'll talk through it honestly, but with mixed-origin steel it's often difficult to certify load capacity. For anything supporting heavy pallets over people or equipment, we recommend new.

Question 12

What safety accessories are actually worth the investment?

Accepted Answer

Column protectors and end-of-aisle guards pay for themselves the first time a lift makes contact, and wire decking is worth adding anywhere you handle non-standard pallets or small cartons. Row spacers, safety bars, and rack netting matter most in areas with pedestrian traffic or heavy pallets. We'll recommend what fits your operation and tell you what you can skip.

Industrial Warehouse Racking & Pallet Rack Solutions in Orlando, FL

Pallet Rack Systems for Every Warehouse Need

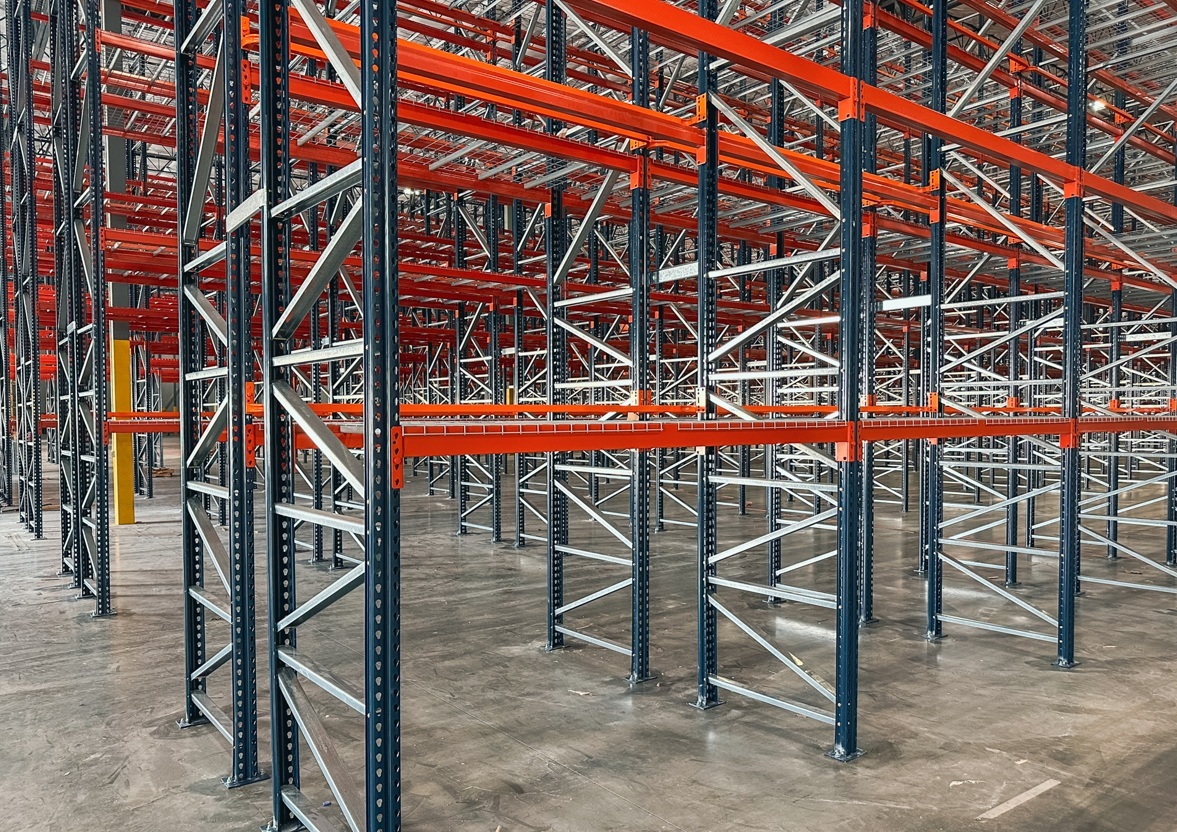

Selective Pallet Rack

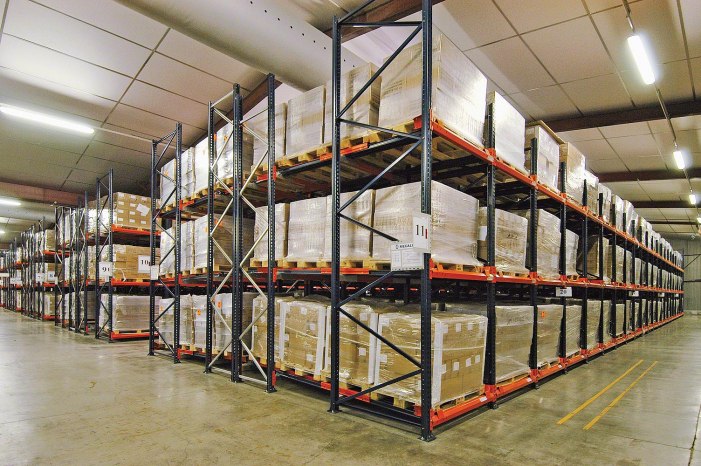

Push Back Pallet Rack

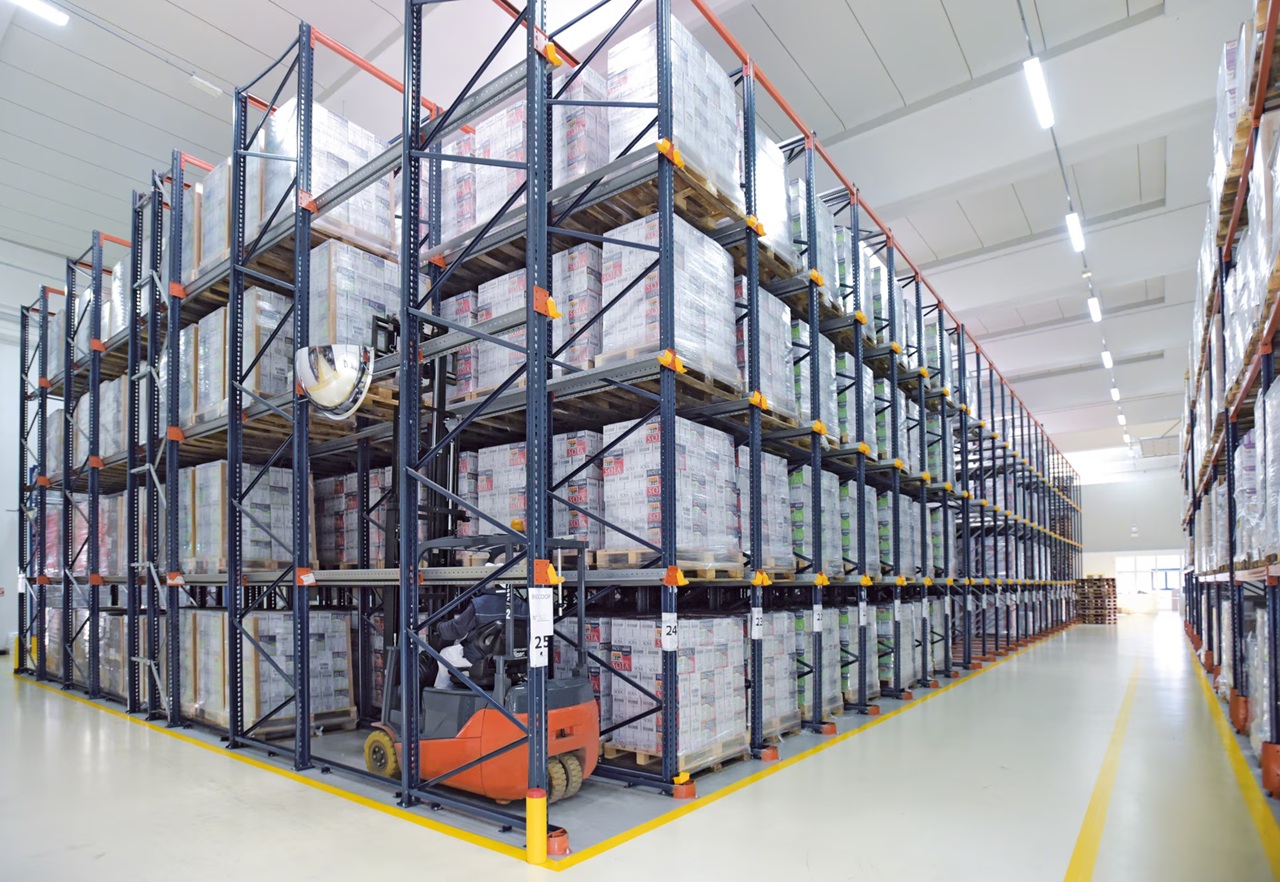

Drive-In Pallet Rack

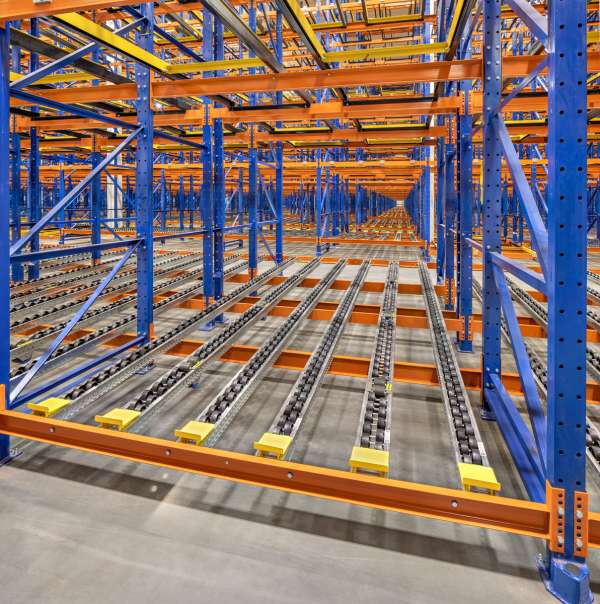

Pallet Flow Rack

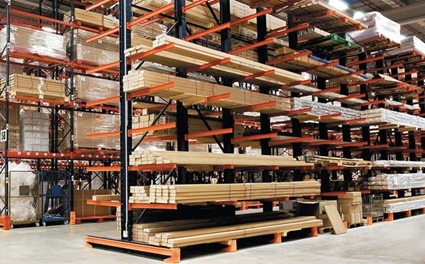

Cantilever Rack

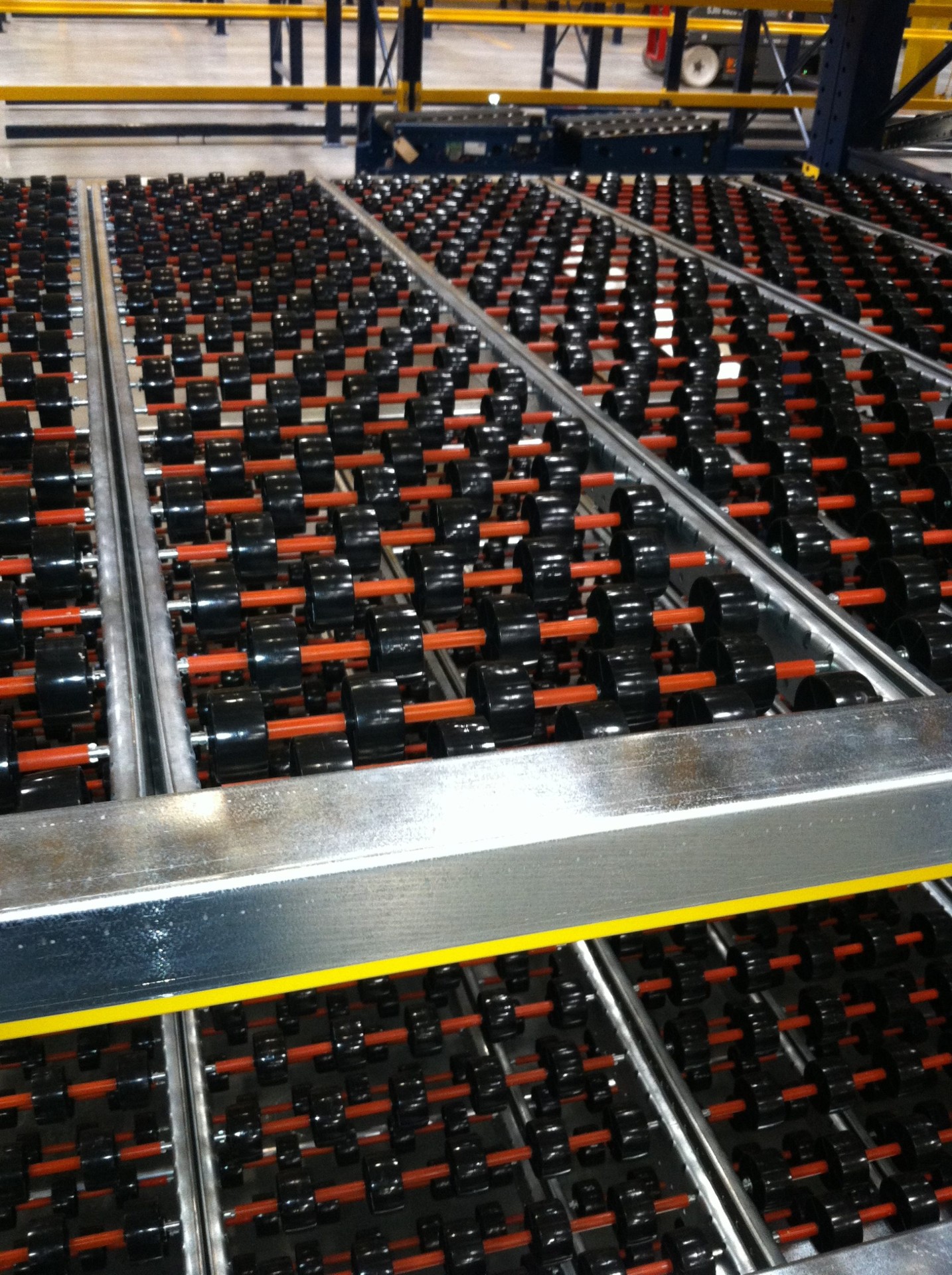

Carton Flow Rack

Complete Warehouse Storage Solutions

Free Warehouse Design

Space Optimization

Fast Delivery

Professional Installation

Direct Support

25+ Years in Business

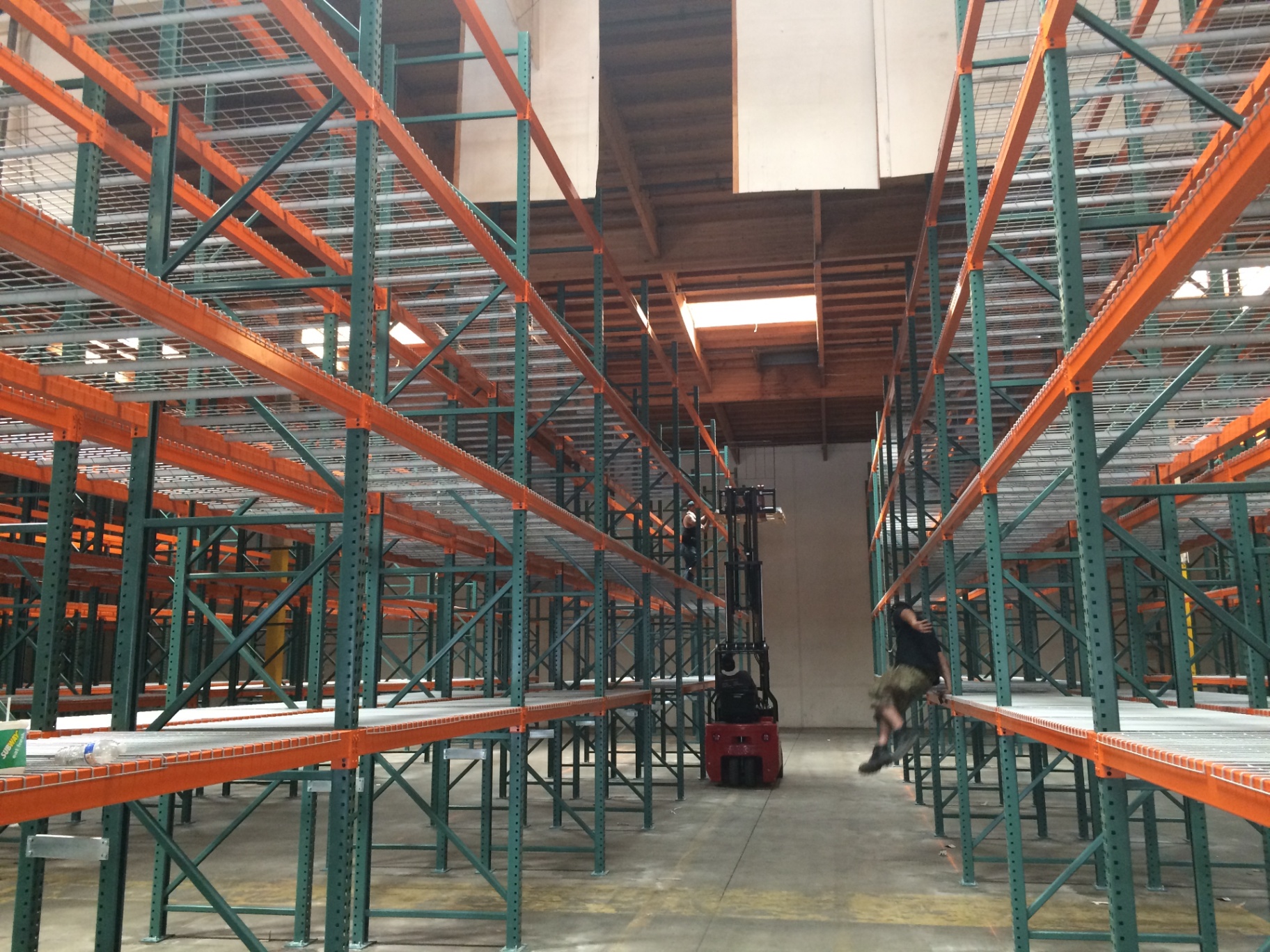

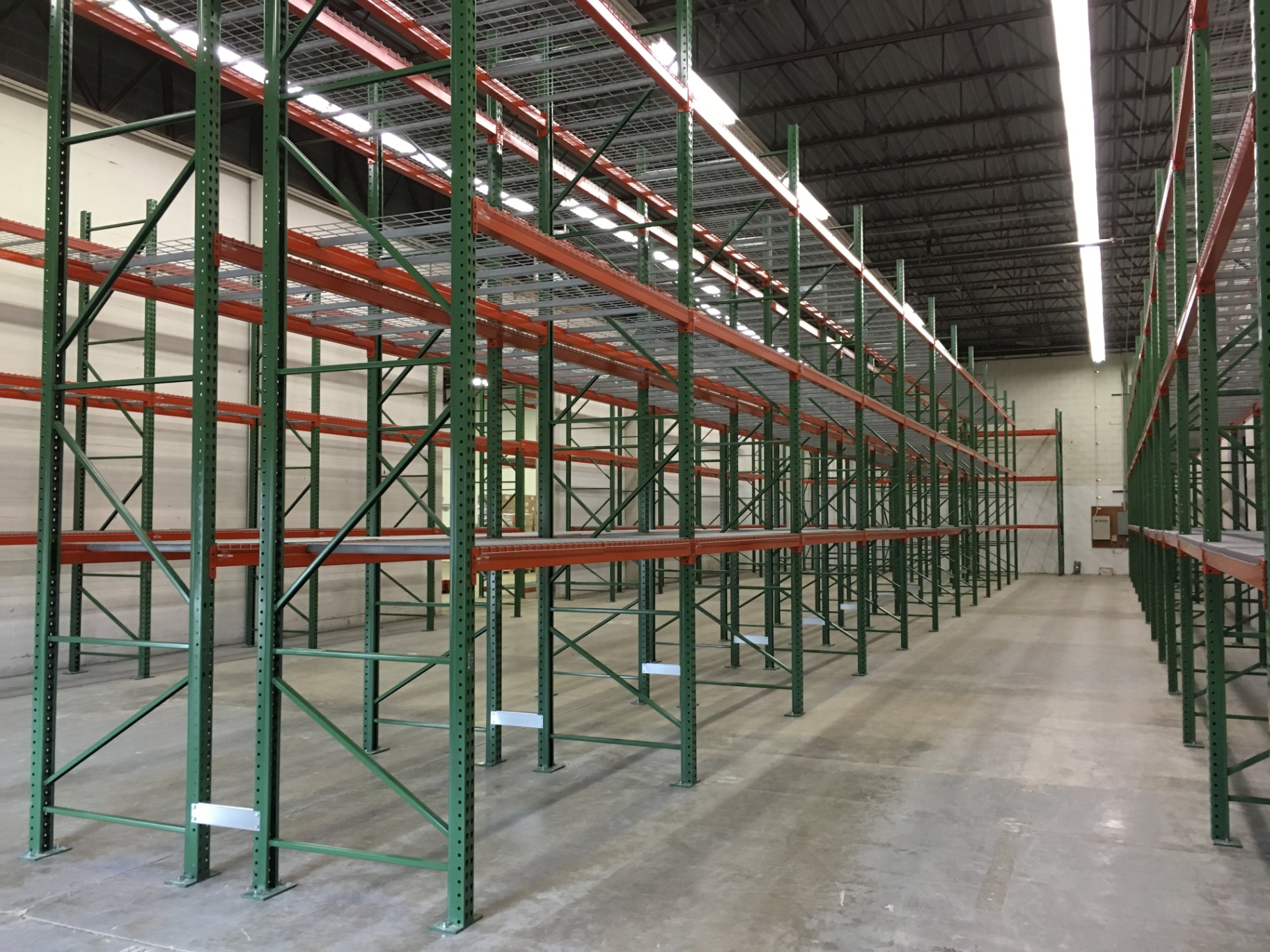

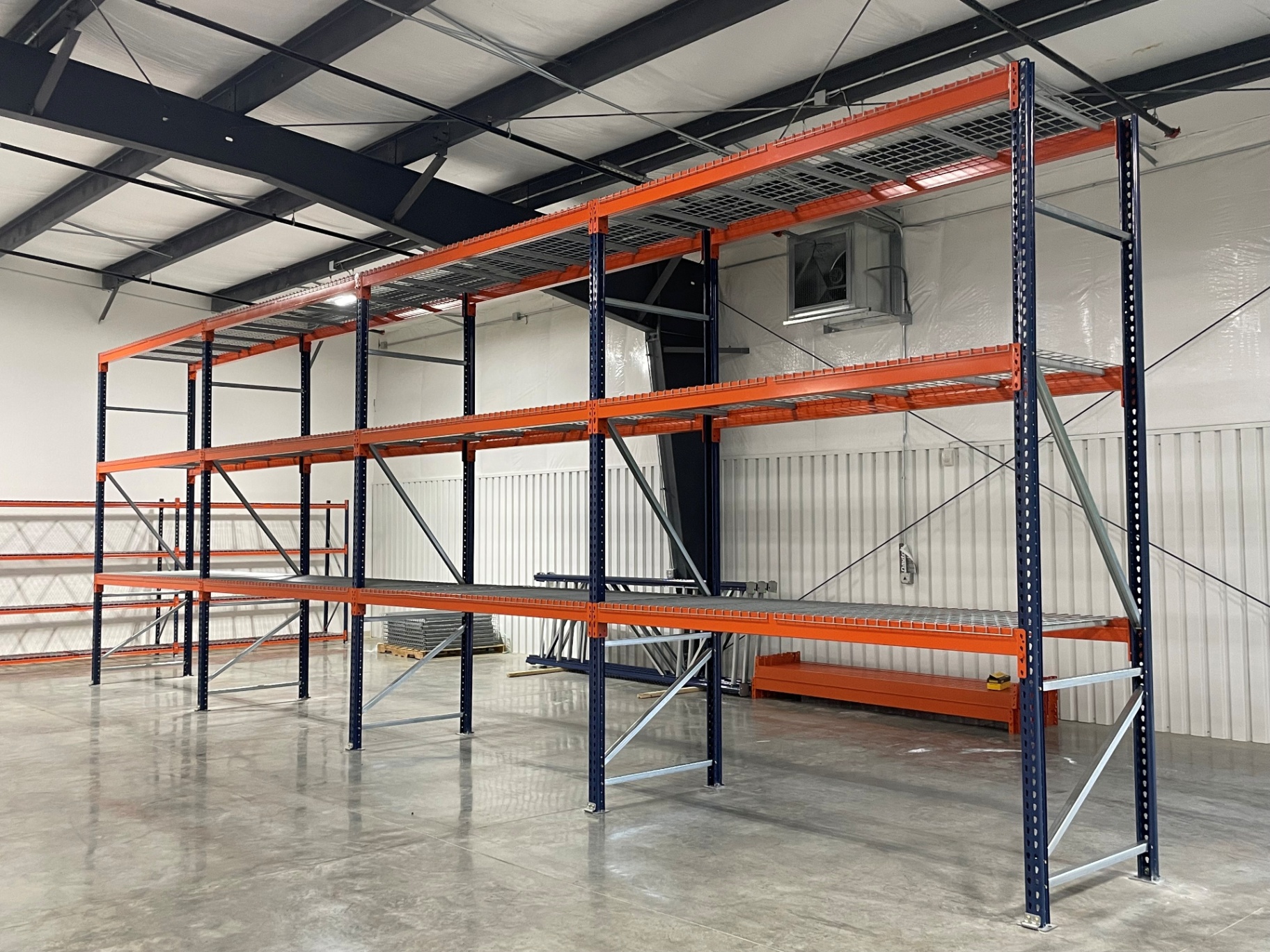

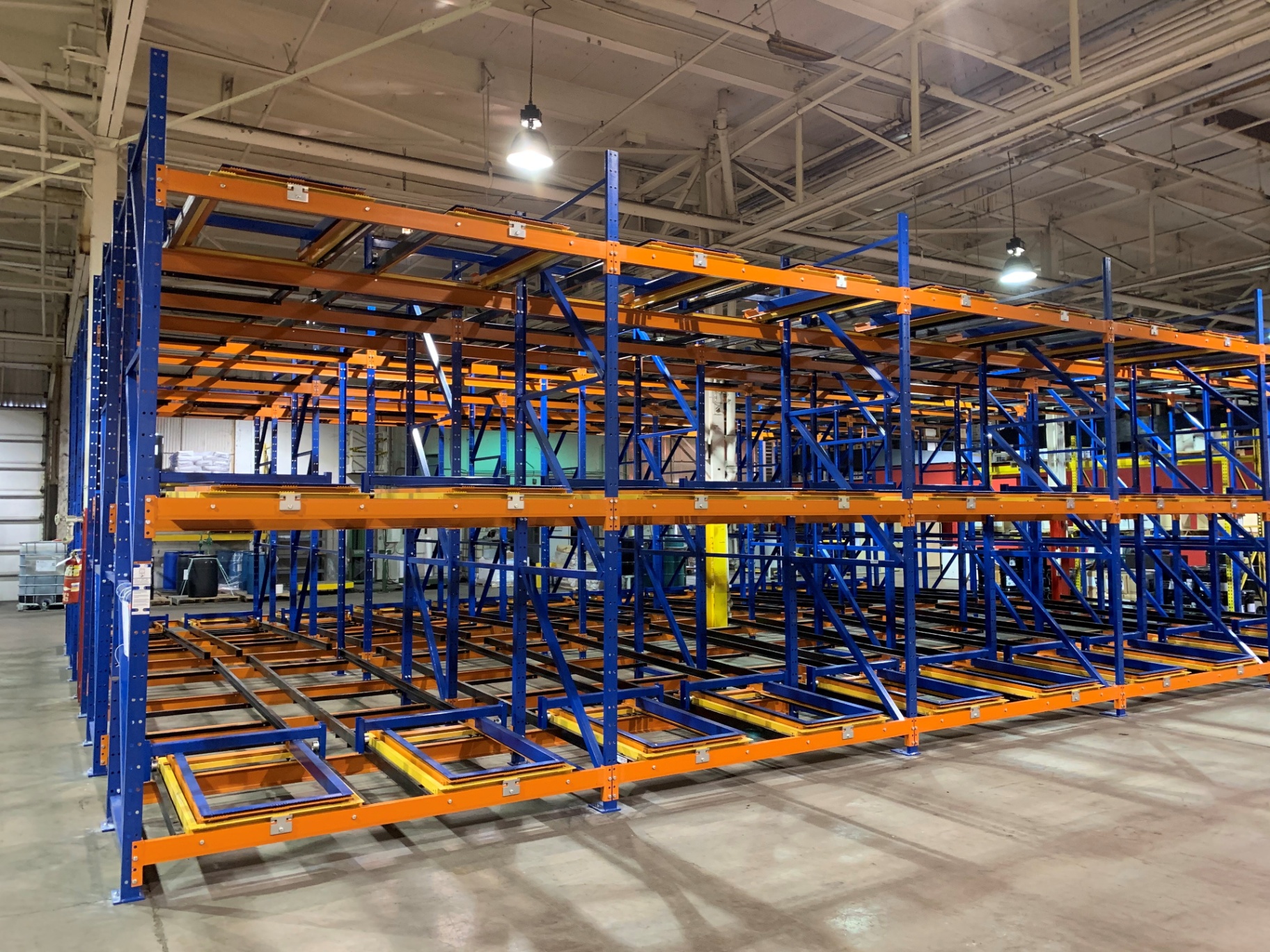

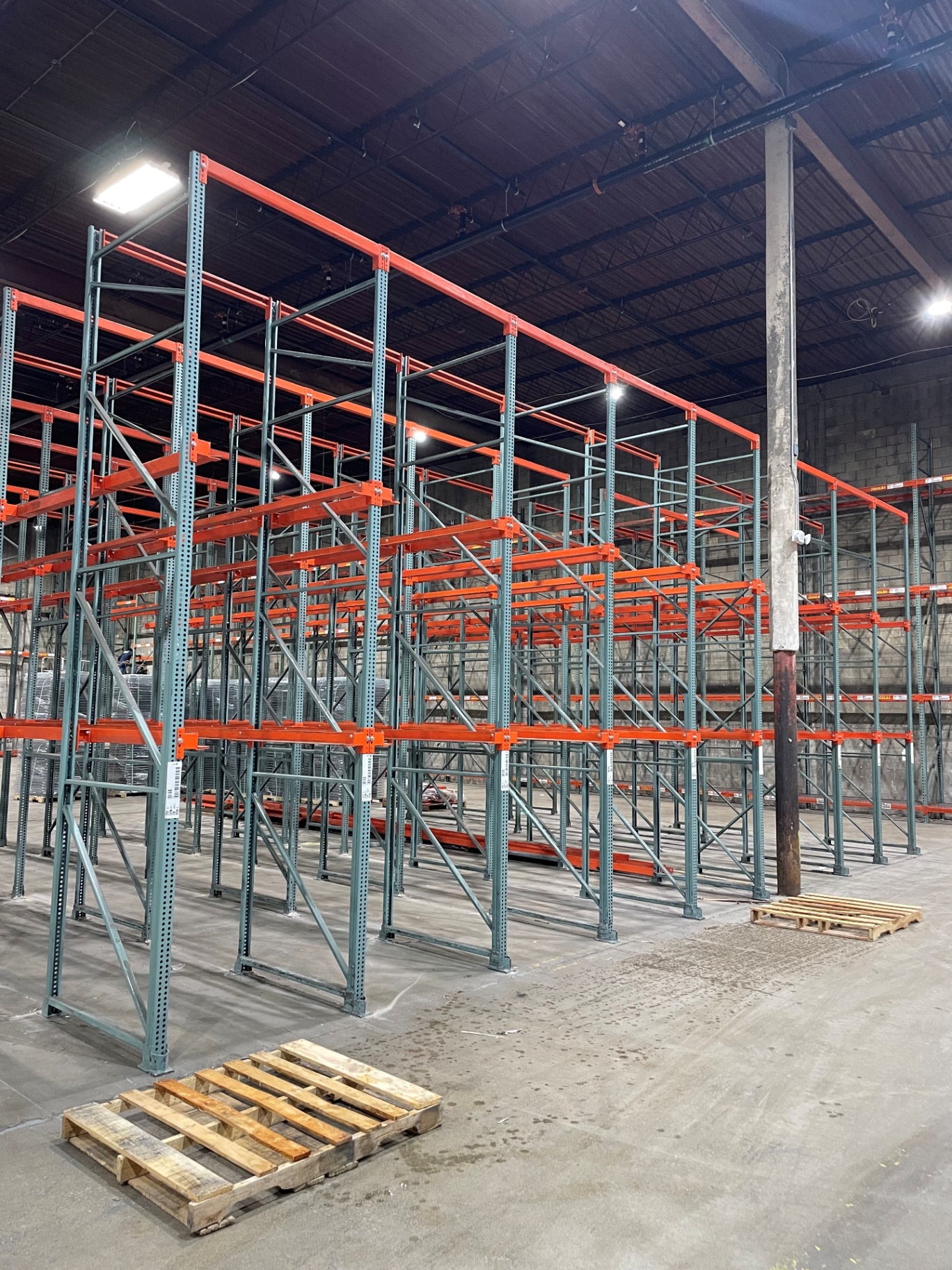

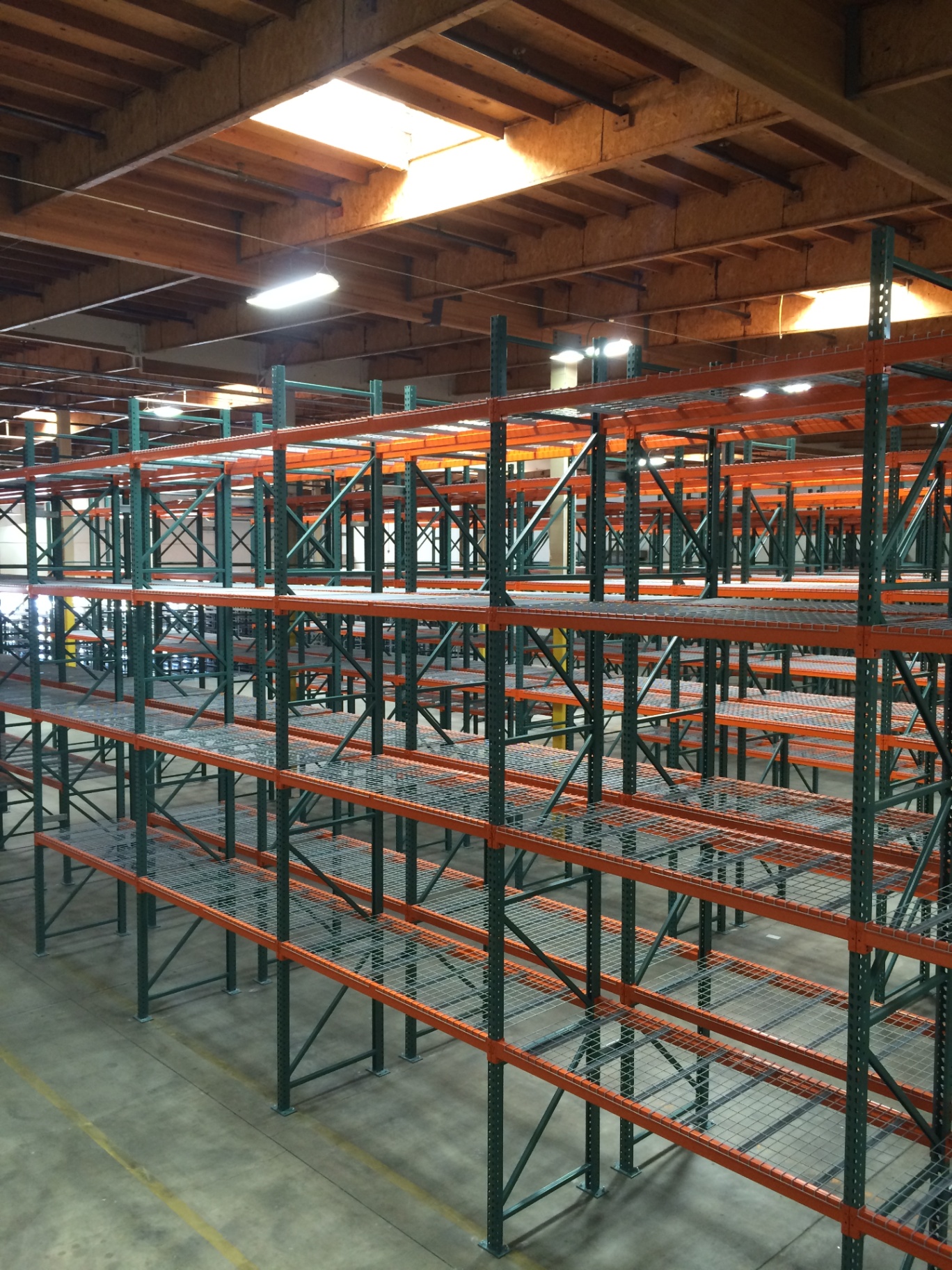

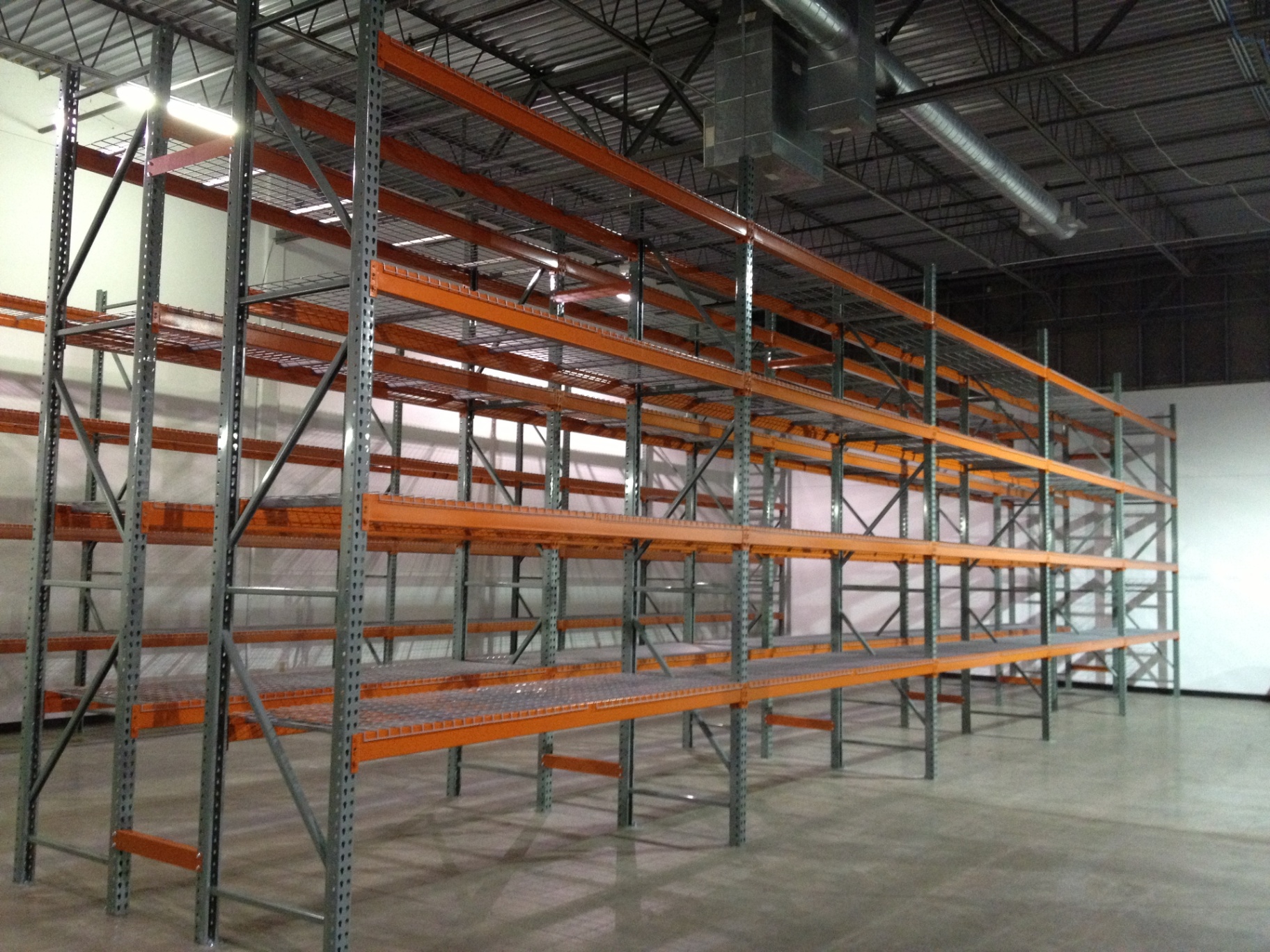

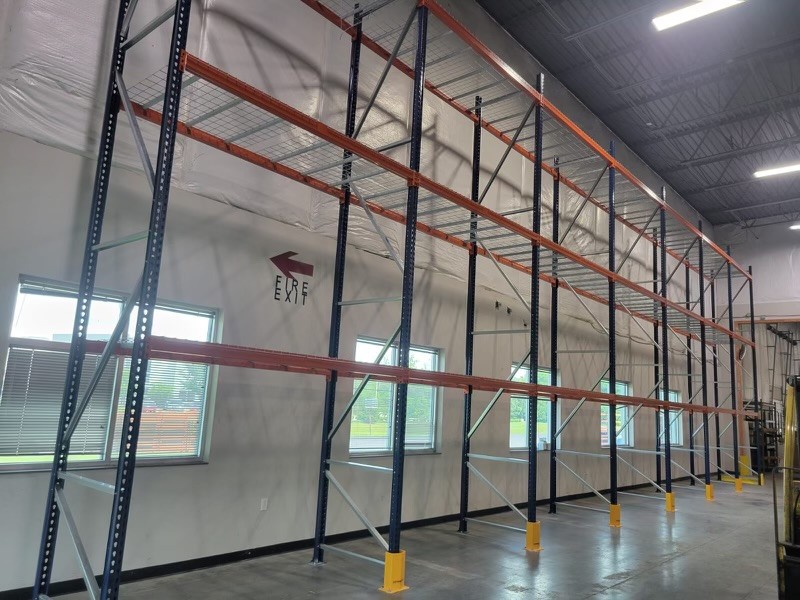

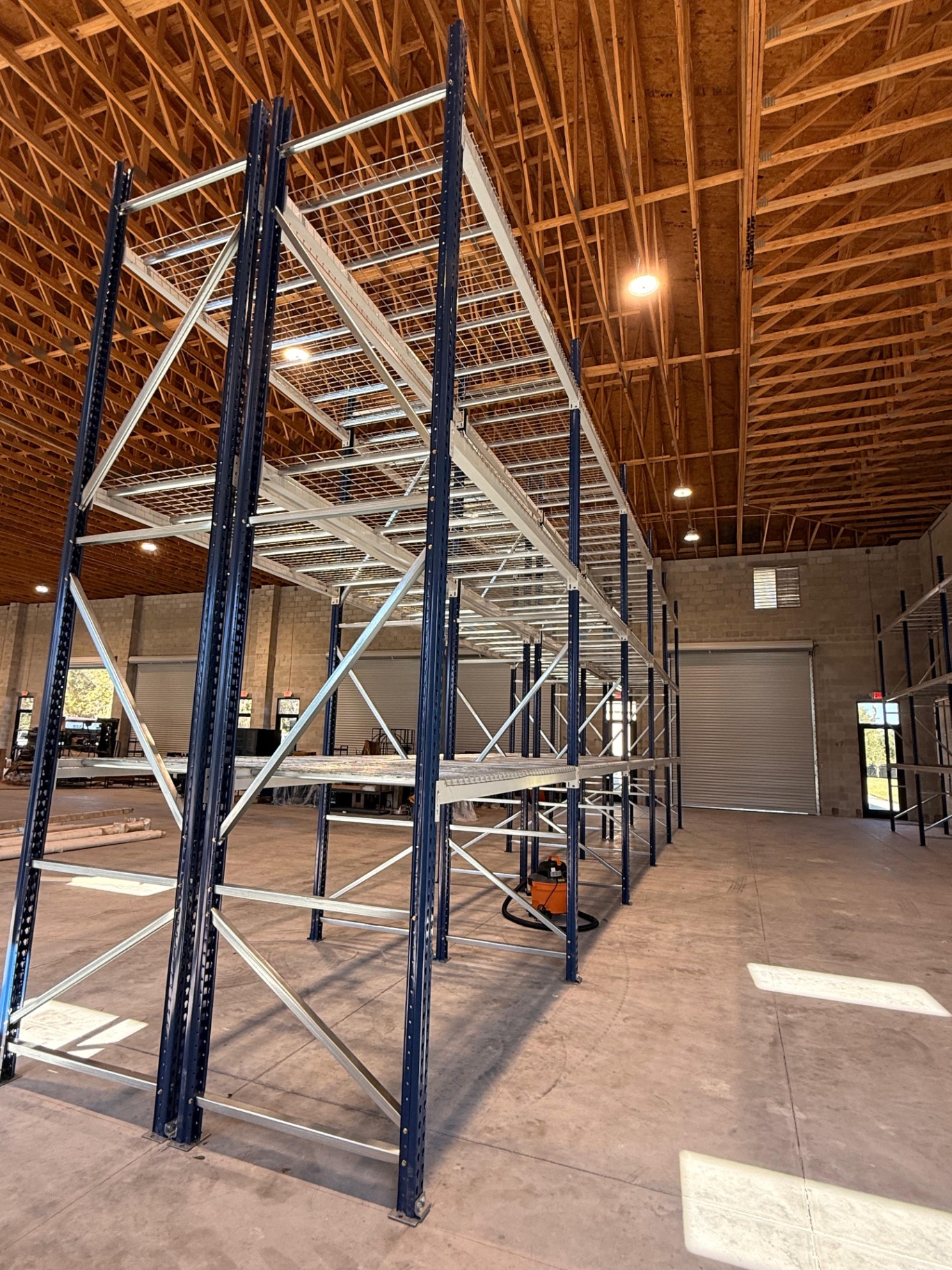

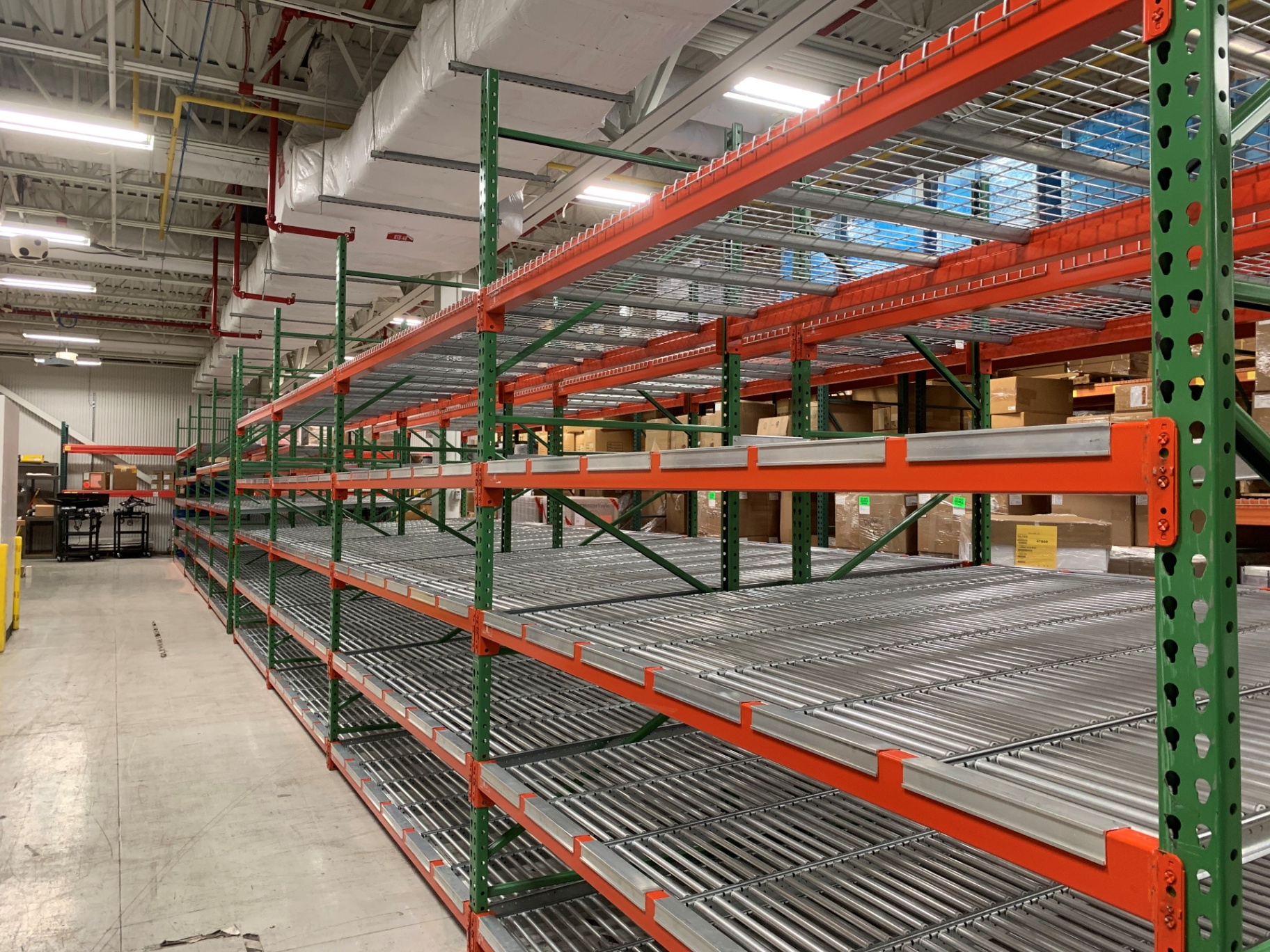

Recent Pallet Rack Projects
